Buy now | Jabra PanaCast Room Kit

All‑in‑one video solution for complete large‑room coverage

Sold out

Why you'll love PanaCast Room Kit

Super simple setup

Plug‑and‑play installation means large rooms are ready fast, with no programming required.

All‑in‑one large room solution

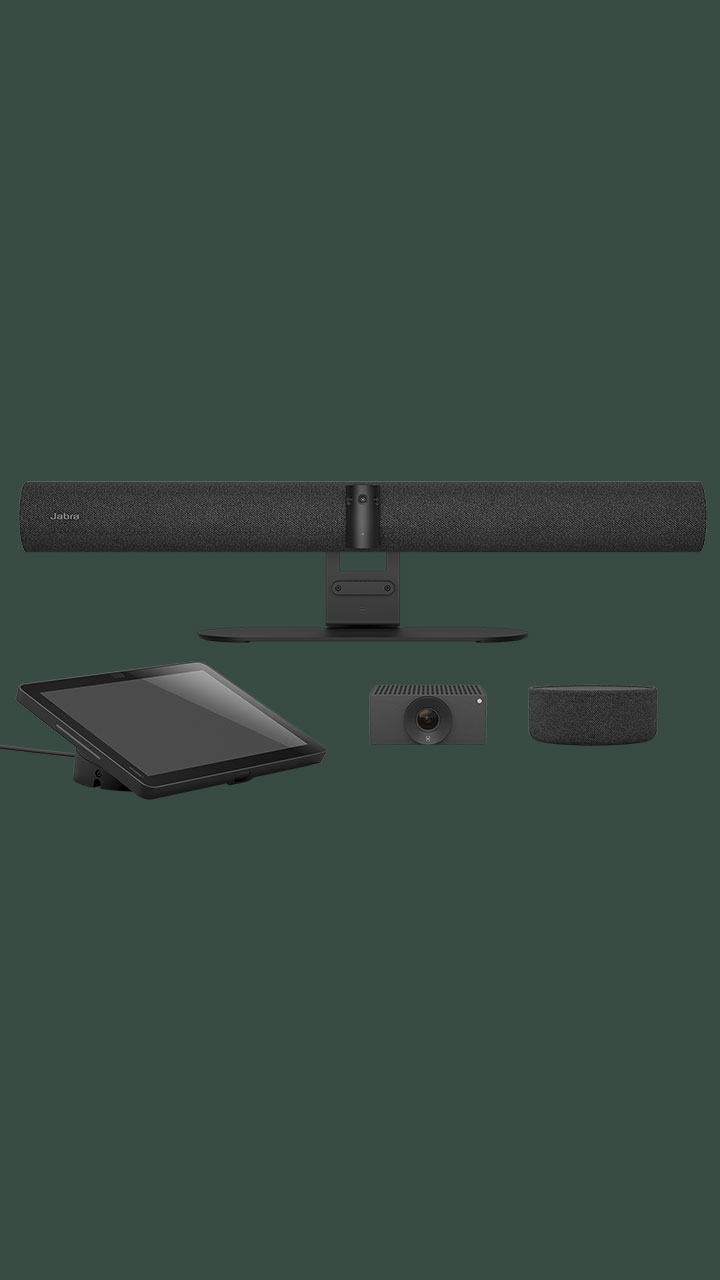

Includes PanaCast 55 VBS, PanaCast SpeakerMic, and Huddly L1 for a complete audio and video solution.

Full room audio and visual coverage

High‑quality video and room‑filling audio ensure everyone can be seen and heard clearly, even at the back of the room.

More natural meeting experiences

AI-powered video tracks individual speakers, while Picture‑in‑Picture keeps both the active speaker and the full room in view

Easy device management

Manage devices remotely and keep them up to date via Jabra Plus.

Secure by design

Built on Microsoft Device Ecosystem Platform (MDEP) for secure, future‑ready performance.

Product overview

Capture everyone clearly

High quality video ensures every participant is seen in crisp detail.

AI-powered video experience

Intelligent speaker tracking keeps conversations feeling natural, while Picture‑in‑Picture shows the whole room.

Hear every word

An array of 8 beamforming, noise-cancelling microphones and 4 powerful speakers delivers crystal-clear audio.

Extend audio to the back

PanaCast SpeakerMic plugs into the video bar to bring sound to every corner of the room.

Control at your fingertips

Start and manage meetings easily with the Jabra Control IP.

Fast, easy setup

Plug-and-play installation with in-box provisioning reduces deployment time and complexity.

Secure and future-ready

Built on MDEP with Android 13+ to protect every conversation with robust security.

Select a product to see technical specifications

Technical specifications

Box contents
PanaCast 55 VBS video bar • power supply • wall mount • Jabra Control IP • Privacy cover with sensor • Cable compartment cover and tool • 1 x HDMI cable 1.83m/6ft • 1 x regional power cable
Packaging dimensions (WxHxD)
1065 x 175 x 210 mm | 41.9 x 6.9 x 8.3 in
Main unit dimensions (WxHxD)
730 x 77 x 146 mm | 28.8 x 3.1 x 5.8 in
Main unit weight (base unit)
2259 g | 79.7 oz
Package weight
5760.5 g | 203.2 oz
Warranty
2 years
Onboard AI
Yes
Cable management
Yes
Kensington lock compatible
Yes
Operating voltage
100-240V, 12V, 5A
Power Adapter
AC 100-240V, Output DC 12V 5A
LED features and functions
Answer/end call, Firmware update status, Mute/unmute, Power indicator

Video output
2 x HDMI
Display resolution
Supports up to 4K, Touch Display Compatible
Content sharing
Apple Airplay (only supported by Zoom), HDMI input, Microsoft Teams-Cast (only supported by Teams)
Number of cameras
3
Type of camera
Panoramic multi-camera array
Camera resolution
Up to 3840 x 1080 px
Zoom
Up to 6x lossless digital zoom
Field of view
Horizontal: 180°, Vertical: 54°
Intelligent Zoom
Yes
Intelligent Meeting Space
Yes
Multi-stream Dynamic Composition
Yes
Dynamic Composition
Yes
Virtual Director
Yes
Vivid HDR
Yes
Support secondary external USB camera
Yes

Supported number of SpeakerMics
1
Audio coverage
Up to 7 m
Audio coverage (PanaCast 55 VBS with PanaCast SpeakerMic)
Up to 11 m
Speakers
2 x 2" (50mm) woofers, 2 x 3/4" (20mm) tweeters
Speaker frequency range
80Hz - 20000Hz
Number of speakers
4
Automatic Speaker Detection
Yes
Noise Reduction Echo Cancellation
Yes
Non-Speech Noise Suppression
Yes
Woofer driver
2 inches, outer diameter 61mm; Sensitivity: 79dB ±2dB @ 1 Watt, 1 meter; Rated Power: 5 Watts; Impedance: 4 Ohms
Mid-Range driver
0.6 inches, outer diameter 33.2mm; Sensitivity: 80.5dB ±2dB @ 1 Watt, 1 meter; Rated Power: 5 Watts; Impedance: 4 Ohms
Microphone type
8 microphone beamforming array - certified for rooms up to 4.5m x 6m
Number of microphones
8
Microphone sensitivity
-37dBFS
Microphone frequency range
100Hz - 16000Hz
Aux-Out
Yes

Media encryption
Provided by VaaS Partner
Access management
Jabra+; Admin menus; Jabra Web Console; Local account; VaaS Admin Portals including MS Teams Admin Centre and Zoom Device Management
Security management
Remote log in via Jabra+, Jabra Web Console and VaaS Admin Portal
Authenticated access to Admin settings, Jabra Web Console, Jabra+
Yes
Lockdown with secureboot, OS verified boot, Vendor lock
Yes
Log retrieval via Jabra Web Console
Yes
Microsoft and Zoom based VaaS account authentication
Yes

Interfaces
Ethernet (RJ45), HDMI, Wi-Fi (802.11a/b/g/n/ac), 1 x USB-A, 2 x USB-C
Bluetooth® version
5.1
Supported USB versions
USB 2.0, USB 3.0

Internet Protocol (IP)
IPv4, IPv6
Ethernet
RJ45
Auto-MDIX
Yes
Proxy support
HTTPS
Support DHCP
Yes
Support Static IP Address
Yes

Compatible software and/or apps
Jabra+; Jabra Web Console for remote device management via HTTPS; Support for native 3rd party applications, including Microsoft Teams Room for Android and Zoom Rooms; Cloud service providers including Microsoft Teams Admin Center and Zoom Device Management
Integrated People Count
Yes

Appliance mode
Yes
BYOD mode
Yes
Digital pan/tilt/zoom
Yes
Manual Pan-Tilt-Zoom (PTZ)
Yes
One touch meeting join
Yes
Camera privacy cover
Yes

Operating temperature
5°C to 35°C | 41°F to 95°F
Operating humidity
15% to 80%
Storage temperature
-20°C to 60°C | -4°F to 140°F
Maximum altitude
4876.8m | 16000ft
Temperature sensor
Yes
Humidity sensor
Yes
CO2 sensor
Yes
TVOCs sensor
Yes

Main unit dimensions (WxHxD)
248 x 85 x 156 mm | 9.8 x 3.4 x 6.2 in
Main unit weight
958g | 33.8oz
Display size
10.1″
Display orientation
Landscape
Display resolution
1920 x 1200
PoE power injector
Yes
Power over ethernet (PoE)
IEEE 802.3af
Proximity sensor
2
Kensington lock compatible
Yes

Technical specifications

Box contents
PanaCast SpeakerMic, Mounting plate, SpeakerMic Adapter, 3x table adhesive, Installation leaflet
Packaging dimensions (WxHxD)
67mm x 186mm x 140mm | 2.64in x 7.32in x 5.51in
Main unit dimensions (ØxH)
136mm x 55mm | 5.35in x 2.17in
Materials used
Fabric, Aluminium, Black plastic
Main unit weight
623g | 22oz
USB cable length
0.5m | 1.6ft
IP rating (main unit)
IPX2
Warranty
2 years

Number of microphones
4
Microphone type
Omnidirectional
Microphone frequency range
Analog 100Hz - 18000Hz | Digital 100Hz - 18000Hz
Microphone bandwidth
100Hz - 18000Hz
Noise reduction on calls
Yes
Speaker size
60mm | 2.36in
Speaker frequency range
100Hz - 18000Hz
Speaker bandwidth (music mode)
100Hz - 18000Hz
Speaker bandwidth (speak mode)
100Hz - 18000Hz

Compatible software and/or apps
Jabra Plus, Cloud service provider including Microsoft Teams Admin Center and Zoom Device Management

Connectivity
Cat6 (not included), RJ45, RJ45 to USB-C (SpeakerMic Adapter)
Maximum cable length
Up to 30 meters

Operating temperature
0°C to 40°C | 32°F to 104°F
Storage temperature
-20°C to 45°C | -4°F to 113°F

Technical specifications

Box contents
Huddly L1 • 1 x 2m ethernet cable • USB Adapter • 1 x 0.6m USB-A-C cable • AC/DC Power Adapter w/ Regional power plugs • Wall Mount
Main unit dimensions (WxHxD)
90 mm x 53 mm x 122 mm | 3.5 in x 2.0 in x 4.8 in
Main unit weight (base unit)
0.6 kg | 1.3 lbs
Package weight
1818g / 64oz
Warranty
3 years
Onboard AI
Yes
Power Requirement
5v 3A external power adapter
LED functions
Power indicator
Certifications and compliance
Microsoft Teams Rooms; Zoom Rooms
